Figure 23:
Color code for magnetization direction
![\begin{figure}
\centering
\includegraphics[scale=0.2]{fig/wheel2.eps}
\end{figure}](img20.gif) |

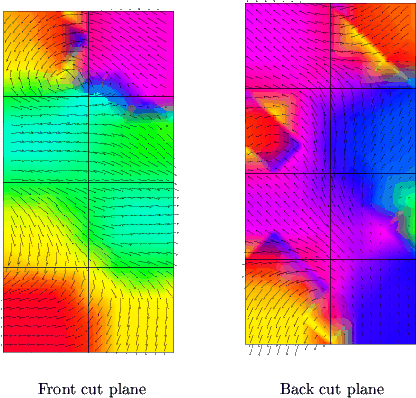

Figure 24:
Magnetization distribution of hex_Ia1m1 in demagnetized state
![\begin{figure}
\centering
\subfigure[Front cut plane]{
\includegraphics[scale...
...e[Back cut plane]{
\includegraphics[scale=0.3]{fig/hex.coe2.eps}
}\end{figure}](img28.gif) |

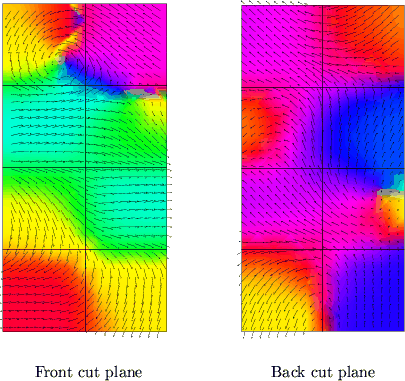

Figure 25:
Magnetization distribution of hex_Ia1m2 in demagnetized state
![\begin{figure}
\centering
\subfigure[Front cut plane]{
\includegraphics[scale...
...[Back cut plane]{
\includegraphics[scale=0.4]{fig/hexf.coe2.eps}
}\end{figure}](img29.gif) |

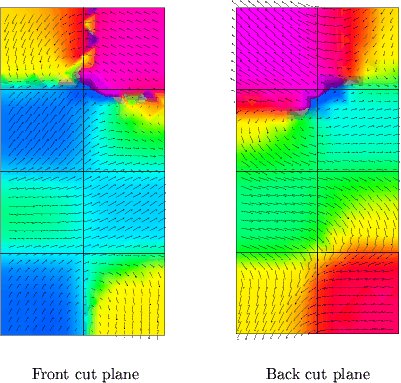

Figure 26:
Magnetization distribution of hex_Ia2 in demagnetized state
![\begin{figure}
\centering
\subfigure[Front cut plane]{
\includegraphics[scale...
...Back cut plane]{
\includegraphics[scale=0.4]{fig/hexf2.coe2.eps}
}\end{figure}](img30.gif) |

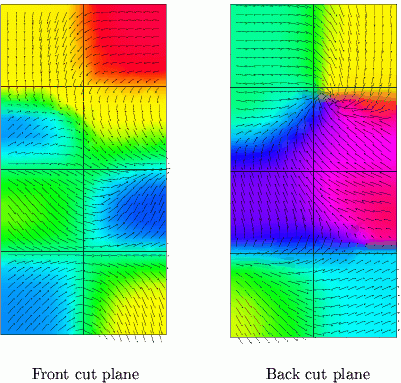

Figure 27:
Magnetization distribution of hex_Ia3 in demagnetized state
![\begin{figure}
\centering
\subfigure[Front cut plane]{
\includegraphics[scale...
...Back cut plane]{
\includegraphics[scale=0.4]{fig/hexf3.coe2.eps}
}\end{figure}](img31.gif) |

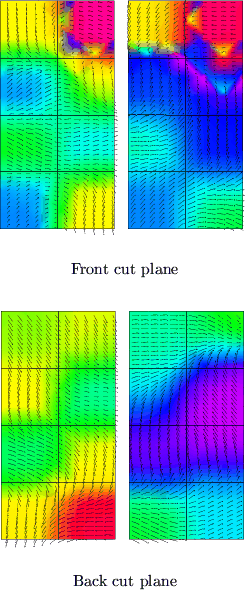

Figure 28:
Magnetization distribution of hex_Hm1 in demagnetized state
![\begin{figure}
\centering
\subfigure[Front cut plane]{
\includegraphics[scale...
...ack cut plane]{
\includegraphics[scale=0.3]{fig/inthex.coe2.eps}
}\end{figure}](img32.gif) |

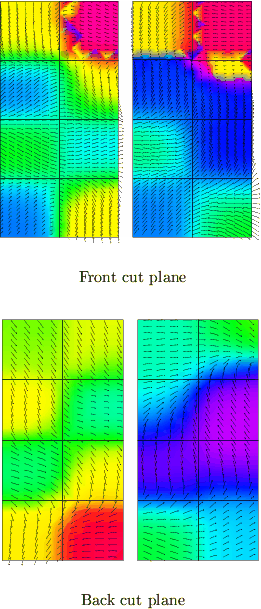

Figure 29:
Magnetization distribution of hex_Hm2 in demagnetized state
![\begin{figure}
\centering
\subfigure[Front cut plane]{
\includegraphics[scale...
...ck cut plane]{
\includegraphics[scale=0.3]{fig/inthexf.coe2.eps}
}\end{figure}](img33.gif) |

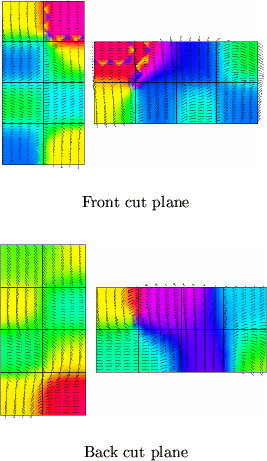

Figure 30:
Magnetization distribution of hex_T in demagnetized state
![\begin{figure}
\centering
\subfigure[Front cut plane]{
\includegraphics[scale...
...k cut plane]{
\includegraphics[scale=0.32]{fig/inthexh.coe2.eps}
}\end{figure}](img34.gif) |
