Graphics Gallery

Thermal activation

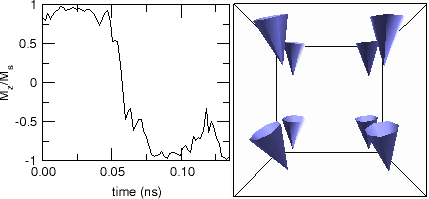

Thermally activated magnetization reversal process of a small cubic particle, discretized with eight magnetization vectors. The thermal fluctuations can be observed in this animation. Detailed information on the numerical micromagnetic simulation of thermally activated switching can be found in my diploma thesis.

Simulation of Magnetic Nanoparticles

Circular Nanodots

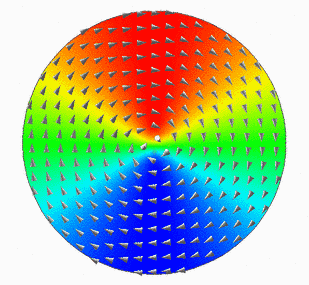

vortex

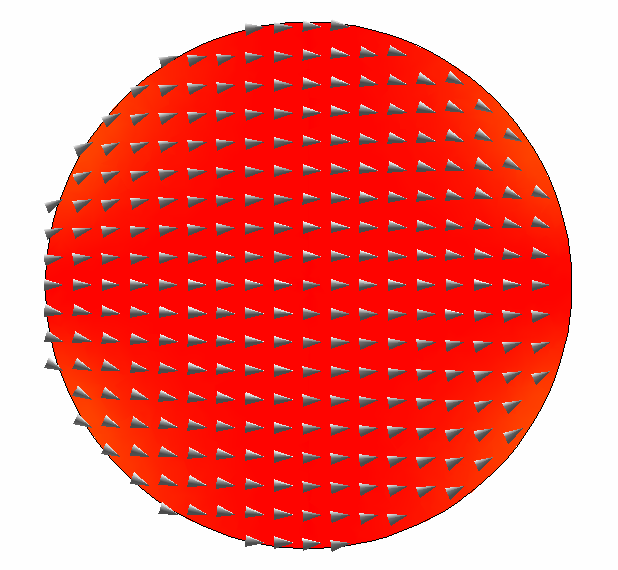

fast and small animation (800 kB)
slow and small animation (8 MB)
slow and large animation (hires, hicol: 20 MB)

Interacting Particles

Stable domain patterns in a chain of NiFe nanoelements have been investigated using finite element micromagnetic simulations. The solution of the Landau-Lifshitz-Gilbert equation provides the hysteresis curves as well as the dynamic response of the system subject to an external field. We have studied elliptical elements with a long axis of 165 nm, a short axis of 55 nm and a thickness of 10 nm. Due to the shape anisotropy and magnetostatic interactions neighboring elements spontaneously align their magnetization antiparallel, if the magnetization of the elements was initially parallel to the short axis. If the initial magnetization is antiparallel, the magnetostatic stray field stabilizes this configuration.

For detailed information see the following paper:
W. Scholz, D. Suess, T. Schrefl and J. Fidler
"Domain structures and domain wall pinning in arrays of elliptical NiFe nanoelements"

Elliptical Particles

snapshot snapshot snapshot

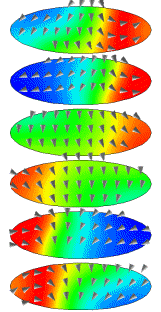

Six particles with initially parallel magnetization perpendicular to the chain axis.
to the movies 		Six particles with initially antiparallel magnetization perpendicular to the chain axis.
to the movies 		Six particles with initially parallel magnetization parallel to the chain axis.
to the movies

Rectangular Particles

snapshot snapshot snapshot
Six particles with initially parallel magnetization perpendicular to the chain axis.
to the movies 		Six particles with initially antiparallel magnetization perpendicular to the chain axis.
to the movies 		Six particles with initially parallel magnetization parallel to the chain axis.
to the movies
